A closer look at Corleone Forged’s
20 × 30 foot SEMA booth.
1 / 9 · Sign assembly and raise
66 full-size component assemblies · no scaling
Sign-first order is requested for this time-compressed illustration. Full-size pieces move into position. The actual installation sequence and rigging must be confirmed by the installer and venue; no construction or engineering method is prescribed.
↔ Drag to orbit · Scroll or pinch to zoom · Arrow keys rotate

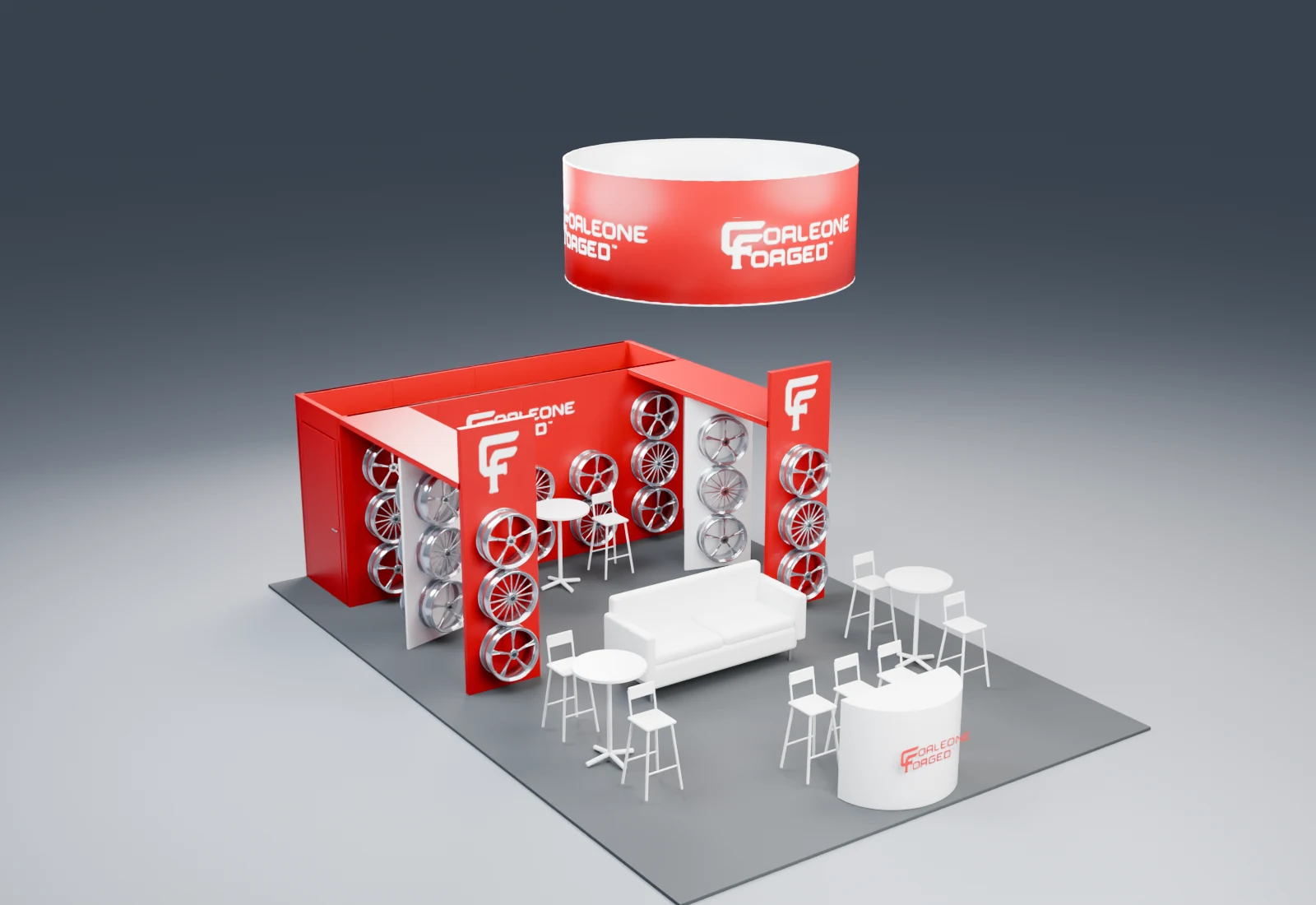

Red display architecture. Polished wheel samples. A white lounge beneath the hanging brand cylinder.

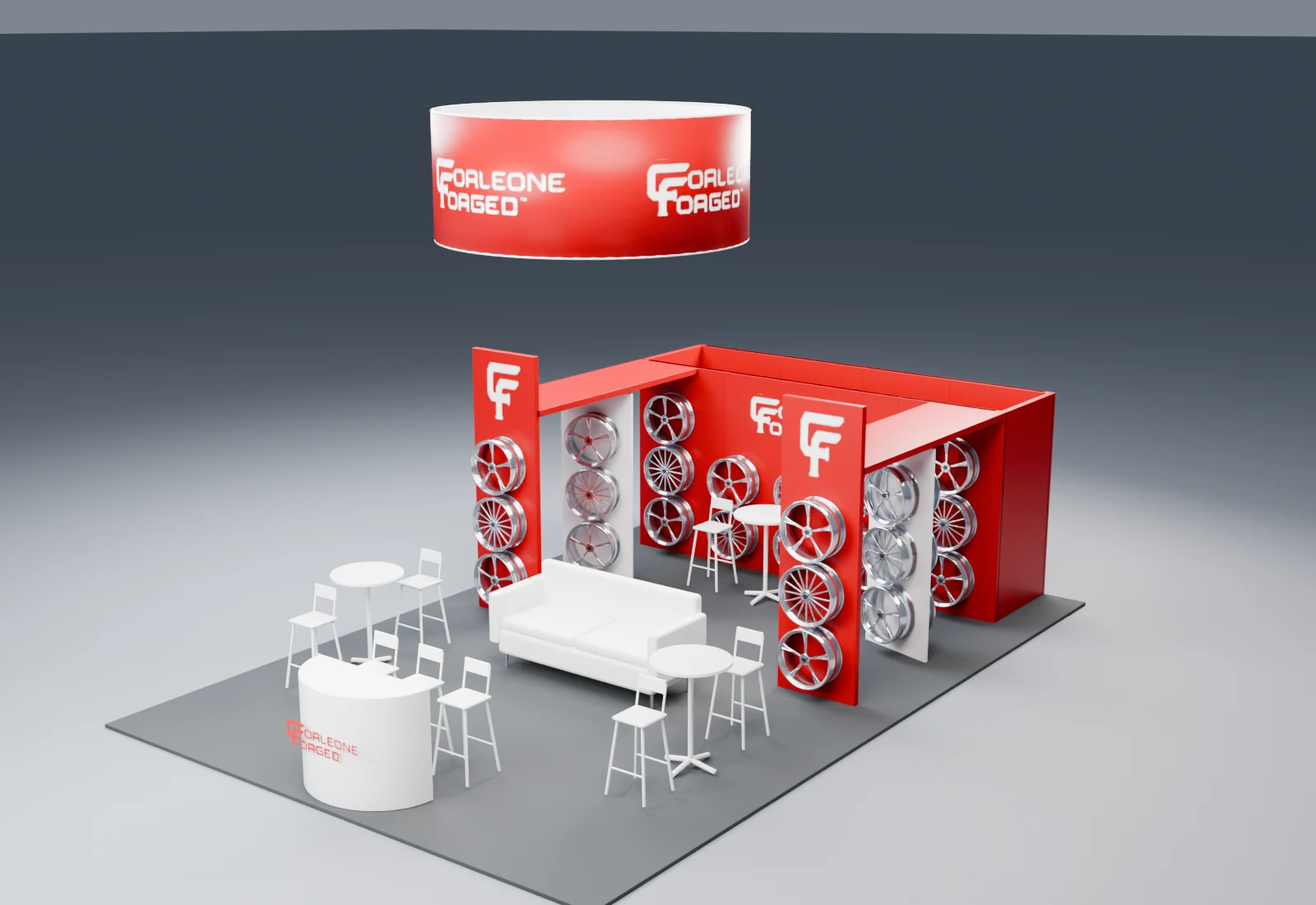

02 / OPPOSITE PERSPECTIVEThe 20 × 30 ft footprint, 199 in rear span, 8 ft storage walls, 10 ft front panels, 92 in angled panels, and two 119 × 36 in soffits follow the supplied design dimensions. The 10 ft diameter × 4 ft cylinder is centered 150 in from the front boundary.
The red and white arrangement, curved reception counter, sofa, three café tables and nine stools follow the supplied renderings and plan. Brand graphics and wheel examples are visualization approximations.
The sign’s “15 ft from floor” note has no clear datum. This study places its underside at 15 ft. Furniture sizes, wheel sizes and sample details, the angled panels’ rotation, and final red laminate are visual estimates. Exact wheel models and graphics remain to be confirmed.
This is a design visualization for spatial and visual review. Furniture and wheel details, the red finish and production graphics are illustrative. The hanging sign is shown with its underside at 15 ft; that height datum remains an assumption.
The build sequence illustrates the model’s components. It is not a construction method, structural design, electrical plan or rigging guide. Confirm fabrication dimensions and suspension with the design team before building.
